Intro

Today I'll explore how Docker facilitates the creation of reproducible and isolated Linux environments, accelerating the testing, debugging, and deployment phases of C/C++ applications. By harnessing the capabilities of Docker, C++ programmers can ensure consistency across development, testing, and production environments, ultimately enhancing productivity and software reliability. My complete environment containing example application available as always on my github.

Part 1 - Docker Overview

Understanding Docker

Docker is a platform that uses containerization to package and run applications in isolated environments called containers. These containers are lightweight and portable, containing everything needed to run the application, including code, runtime, system tools, libraries, and settings.They provide an abstraction layer between one or more processes (i.e., an application) and the OS on which they run. A container packages these processes and their underlying dependencies together so that they can be easily implemented on any OS that supports the container infrastructure. Under the hood, Docker leverages several Linux kernel features, such as cgroups (control groups) for resource isolation, namespaces for process isolation, and UnionFS (Union File System) for layering file systems.

Docker vs Virtual Machine

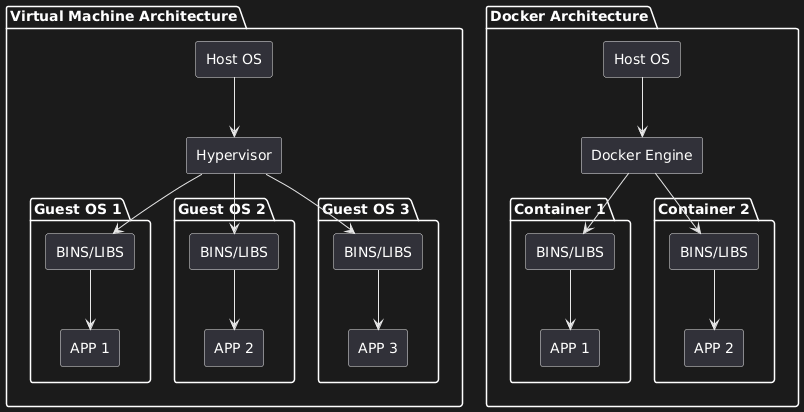

*Figure 1: docker vs vm - plant_uml

Feature	Containers	Hypervisors
Abstraction Layer	Specific processes and their dependencies	Underlying hardware (virtual machines)
Redeployment	Services and applications to multiple Linux distributions (distros)	Entire systems: OS, services, applications on a single system
Software Integration	Integrated into underlying OS and runs on hardware	Managed by hypervisor, but runs directly on hardware
Runtime Separation	Integrated into system during runtime, constrained by container protection	Separated from other guests and isolated during runtime
Operation	Runs as part of OS system	Runs as separate, independent systems; protected by hypervisor
Flexibility	Containered software can run on “bare metal” or in a hypervisor virtual machine	Guest systems can use containers like on “bare metal”

Table 1: Comparison of Containers and Hypervisors

Key Components of Docker

Docker Daemon (dockerd): This is the persistent background process running on the host machine. It listens for Docker API requests and manages Docker objects such as images, containers, networks, and volumes.
Docker Client (docker): The primary interface through which users interact with Docker. It sends commands to the Docker daemon using the Docker API.
Docker Images: Immutable snapshots containing the application, its dependencies, and configurations. These images are built using Dockerfiles and stored in a local registry or a remote repository like Docker Hub.
Docker Containers: Instances of Docker images that run as isolated processes on the host machine. Each container operates in its own isolated environment, providing security and preventing conflicts between applications and their dependencies.

Linux Mechanisms Leveraged by Docker

cgroups (Control Groups): Used for resource isolation, allowing Docker to limit and prioritize CPU, memory, disk I/O, and other resources for containers.
Namespaces: Used for process isolation, providing each container with its own namespace for processes, network interfaces, file systems, and more. Key namespaces utilized by Docker include:
- PID Namespace: Isolates process IDs, enabling containers to maintain separate process trees.
- NET Namespace: Isolates network-related resources like interfaces and firewall rules.
- IPC Namespace: Isolates Inter-Process Communication resources.
- MNT Namespace: Manages mount points, allowing containers to have distinct filesystems.
- UTS Namespace: Isolates host and domain names, creating a unique identity for containers.
UnionFS (Union File System): Used for layering file systems, enabling Docker to create images efficiently by layering changes on top of existing file systems.

Diagrams of Docker Environment on Linux

+---------------------+
|     Dockerfile      |
| (Build Instructions)|
|                     |
|  +-----------------+
|  | Instructions    |
|  | for building    |
|  | the image       |
|  | ...             |
|  +-----------------+
|  Defines the environment and configuration for the  |
|  Docker image.                                   |
+------------------------------------------------------+
           |
           |
           |
           v
+---------------------+
|   Docker Images     |
|                     |
|  +-----------------+
|  | Base OS Image   |
|  | Application     |
|  | Dependencies    |
|  | Configuration   |
|  | ...             |
|  +-----------------+
|    Immutable snapshots containing the             |
|    application, its dependencies, and configurations. |
+------------------------------------------------------+
           |
           |
           |
           v
+---------------------+
|  Docker Containers  |
|                     |
|  +-----------------+
|  | Running         |
|  | Application     |
|  | Instances       |
|  | ...             |
|  +-----------------+
|    Running instances of Docker images.                |
+------------------------------------------------------+




+---------------------+    Docker Daemon
|  Docker Client      | <--------------------------+
|  (User Interface)   |                             |
+---------------------+                             |
|  User-facing command-line interface for Docker.     |
+----------------------------------------------------+
           |
           |
           |
           v
+---------------------+
|      Docker Daemon  |  <------------------------------------+
+---------------------+                                       |
|  Persistent process running on the host machine.            |
|  Manages Docker objects such as images, containers,         |
|  networks, and volumes.                                      |
+--------------------------------------------------------------+
           |
           |
           |
           v
+---------------------+-----------------------------+
|      containerd     |                             |
|  (Container Runtime)|                             |
|                     |                             |
|  +-----------------+|                             |
|  |    runc         ||                             |
|  | (Container Tool)||                             |
|  +-----------------+|                             |
|  Manages container lifecycle tasks, including     |
|  creation, execution, and destruction.              |
+------------------------------------------------------+

This diagram illustrates the core components of the Docker environment on a Linux system, including the Docker daemon, containers, images, and Dockerfile used for building images.

When executing Docker commands, a following sequence of interactions occurs:

+---------------------+
|   Docker Client     |
|   (User Interface)  |
+---------------------+
           |
           |
           | Docker Commands
           v
+---------------------+
|   Docker Daemon     |
|      (dockerd)      |
+---------------------+
           |
           |
           | Container Management Tasks
           v
+---------------------+
|      containerd     |
|  (Container Runtime)|
+---------------------+
           |
           |
           | Container Management (utilizes namespaces, cgroups, and runc)
           v
+---------------------+
|        runc         |
|  (Container Tool)   |
+---------------------+

Understanding Differences between Container Technologies - Docker, LXC, and OCI

Docker

Docker is a platform designed to simplify the creation, deployment, and management of applications within containers. It abstracts application-level processes and dependencies, allowing developers to encapsulate their applications in containers that can run consistently across various environments. Docker's ecosystem includes Docker Hub for image distribution, Docker Compose for multi-container applications, and extensive APIs for automation.

LXC (Linux Containers)

LXC, or Linux Containers, represents a more traditional form of containerization, providing lightweight virtualization at the operating system level. It leverages Linux kernel features like cgroups (control groups) and namespaces to create isolated environments. LXC is particularly useful for running multiple isolated Linux systems on a single host, offering a minimalistic approach compared to Docker.

OCI (Open Container Initiative)

The Open Container Initiative (OCI) was established to promote standardization within the container ecosystem. It defines open industry standards for container image formats and runtimes, ensuring interoperability across different container tools and platforms. OCI specifications are widely adopted by major container engines, including Docker, to maintain consistent container behavior.

Comparison Table: Docker, LXC, and OCI

To better understand the distinctions and similarities between Docker, LXC, and OCI, refer to the comparison table below:

Comparison of Docker, LXC, and OCI

Feature	Docker	LXC (Linux Containers)	OCI (Open Container Initiative)
Purpose	Simplifies application deployment and management	Provides lightweight virtualization at OS level	Establishes open industry standards for container formats and runtimes
Abstraction Level	Application-level with its dependencies	OS-level virtualization	Standardized framework for containers
Usage	Widely used for microservices and cloud-native applications	Used for running multiple isolated Linux systems on a single host	Defines container image format and runtime specifications
Integration	Highly integrated with Docker Hub and Docker Compose	Directly integrates with Linux kernel features	Provides specifications adopted by major container engines like Docker
Deployment	Easy to deploy and manage via Docker CLI and APIs	Requires more manual setup and configuration	Focuses on compatibility across different container tools and platforms
Isolation	Uses container technology with additional tools for management	Pure container management using cgroups and namespaces	Ensures consistent behavior of containers across different environments
Image Format	Docker Images	LXC Templates	OCI Images
Runtime	Docker Engine	LXC Tools	OCI Runtime Specification (e.g., runc)
Community and Ecosystem	Large ecosystem with extensive tools and third-party integrations	Mature but smaller community compared to Docker	Supported by industry leaders to maintain interoperability standards

Table 1: Comparison of Docker, LXC, and OCI

Setting Up Docker for C/CPP Development

Setting Up Docker for C/CPP Development involves installing Docker on your development machine, understanding the basics of Dockerfile for defining the development environment, and creating a Docker image tailored for C/C++ development.

Installing Docker on Your Development Machine

First, you need to install Docker on your development machine. There are different ways to install Docker, depending on your operating system.

Docker Desktop: Docker Desktop is a convenient solution for developers working on Windows or macOS. It includes Docker Engine, Docker CLI client, Docker Compose, Docker Content Trust, Kubernetes, and Credential Helper.

Follow the instructions provided on the Docker Desktop website to download and install Docker Desktop for your operating system.
Docker Engine: Docker Engine is the core technology behind Docker containers. It's available for various Linux distributions and is typically installed via package managers like apt or yum.

Follow the instructions provided on the Docker Engine website to install Docker Engine on your Linux distribution.

Basics of Dockerfile

Create a new directory for your C/C++ project and navigate into it:

mkdir my_cpp_project
cd my_cpp_project

Inside your project directory, create a new file named Dockerfile using a text editor of your choice:

touch Dockerfile

Edit the Dockerfile and define the environment for your C/C++ project. Here's a basic example:

# Use an official Ubuntu as a base image
FROM ubuntu:latest

# Set environment variables
ENV DEBIAN_FRONTEND noninteractive

# Install build essentials and other necessary tools
RUN apt-get update && apt-get install -y \
    build-essential \
    cmake \
    gcc \
    g++ \
    gdb \
    && rm -rf /var/lib/apt/lists/*

# Set the working directory in the container
WORKDIR /usr/src/my_cpp_project

# Copy the local project files into the container
COPY . .

In this Dockerfile:

FROM: Specifies the base image for the Docker image.
ENV: Sets environment variables. In this example, it disables interactive prompts during package installation.
RUN: Executes commands within the container to install necessary tools.
WORKDIR: Sets the working directory within the container.
COPY: Copies the local project files into the container.

Creating a Docker Image for C/CPP Development

Once you've created the Dockerfile, you can build the Docker image using the docker build command. Run the following command in your project directory:

docker build -t my_cpp_image .

This command builds a Docker image with the tag my_cpp_image using the Dockerfile (. denotes the current directory).

Useful Docker Client Commands

Building Docker Images:
```
docker build -t my_image .
```

Running Docker Containers:

docker run --name my_container my_image

Listing Docker Containers:
```
docker ps -a
```
Inspecting Docker Containers:
```
docker inspect my_container
```

Copying Files to/from Docker Containers:

docker cp local_file.txt my_container:/path/to/destination

Viewing Docker Logs:
```
docker logs my_container
```
Stopping Docker Containers:
```
docker stop my_container
```

Removing Docker Containers/Images:

docker rm my_container
docker rmi my_image

Pulling Docker Images from Registry:
```
docker pull my_registry/my_image:tag
```
Pushing Docker Images to Registry:
```
docker push my_registry/my_image:tag
```
Executing Commands inside Docker Containers:
```
docker exec -it my_container bash
```
Managing Docker Networks:
```
docker network ls
```
Inspecting Docker Volumes:
```
docker volume inspect my_volume
```
Cleaning up Unused Resources:
```
docker system prune
```
Listing Docker Images:
```
docker images
```
Searching Images Online:
```
docker search $IMAGE_NAME
```

Attaching to a Running Container:

docker exec -it CONTAINER_ID_OR_NAME /bin/bash

Starting and Stopping Containers:
```
docker start/stop CONTAINER_ID_OR_NAME
```
Killing All Containers:
```
docker kill $(docker ps -q)
```
Removing Containers:
```
docker rmi CONTAINER_ID_OR_NAME
```

Removing All Containers:

docker rm $(docker ps -q -a)  # -f for force remove even if it is running

Exporting (Saving) an Image:

docker save IMAGE_NAME > IMAGE_NAME.tar.gz

Loading (Importing) an Image:
```
docker load -i IMAGE_NAME.tar.gz
```

Finding the SHA256 Hash of a Docker Image:

docker inspect --format='{{index .RepoDigests 0}}' IMAGE_NAME

Pulling Docker Image by the SHA256 Digest:
```
docker pull IMAGE_NAME@sha256:0a3b2cc81
```

Managing Dependencies

Managing dependencies within your Dockerized C/C++ development environment is crucial for ensuring smooth project builds and executions. This involves:

Utilizing Package Managers:
- Use tools like apt or yum within the Dockerfile to install system-level dependencies.
- Specify package versions to ensure consistency and reproducibility.

# Example of installing specific versions of packages using apt
RUN apt-get update \
    && apt-get install -y \
        <package1>=<version1> \
        <package2>=<version2> \
        ...
        <packagen>=<versionn> \
    && rm -rf /var/lib/apt/lists/*

Incorporating Third-Party Libraries:
- Download and install third-party libraries from their official sources or package repositories.
- Specify precise versions and document dependencies for future reference.

# Example of incorporating a third-party library into the Docker image
RUN curl -L -o <library>.tar.gz <URL_to_library.tar.gz> \
    && tar -xzvf <library>.tar.gz \
    && cd <library> \
    && ./configure \
    && make \
    && make install \
    && cd .. \
    && rm -rf <library>.tar.gz <library>

By managing dependencies effectively and specifying precise versions within your Dockerfile, you ensure consistency and reproducibility across different environments, making it easier to build and distribute your C/C++ projects.

Streamlining Build Processes

Automating the Build Process using Dockerfile and Docker Compose

Docker Compose can be employed for orchestrating multi-container applications and defining complex build configurations. Let's consider a scenario where you have a C/C++ project consisting of multiple services, such as a web server and a database. We'll compare how you would use Docker Compose and Docker run commands to manage these services.

Scenario:

You have a C/C++ project named "MyProject" that includes a web server service and a database service.

Docker Compose Example:

With Docker Compose, you can define a docker-compose.yml file to orchestrate the deployment of multiple containers as services.

# docker-compose.yml

version: '3'
services:
  web_server:
    image: my_project_web_server:latest
    ports:
      - "8080:80"
    depends_on:
      - database
  database:
    image: mysql:latest
    environment:
      MYSQL_ROOT_PASSWORD: root_password
      MYSQL_DATABASE: my_database

In this example:

The web_server service is defined with the my_project_web_server image, exposing port 8080 on the host and depending on the database service.
The database service is defined with the mysql image, setting environment variables for MySQL root password and database name.

You can then deploy the services using the following Docker Compose command:

docker-compose up

Docker Run Example:

With Docker run commands, you would need to manually specify each container and its configurations.

# Start the database container
docker run --name database -e MYSQL_ROOT_PASSWORD=root_password -e MYSQL_DATABASE=my_database -d mysql:latest

# Start the web server container
docker run --name web_server -p 8080:80 --link database my_project_web_server:latest

In this example:

The database container is started with the MySQL image, setting environment variables for MySQL root password and database name.
The web_server container is started with the my_project_web_server image, exposing port 8080 on the host and linking it to the database container.

Comparison:

Docker Compose: Provides a declarative way to define and manage multi-container applications, simplifying service orchestration and dependencies.
Docker Run Commands: Require manual specification of each container and its configurations, which can become cumbersome for complex applications with multiple services.

In summary, Docker Compose offers a more streamlined and maintainable approach for managing multi-container applications, while Docker run commands are suitable for simpler scenarios or quick ad-hoc deployments.

Handling Different Build Configurations within Docker

Use environment variables or build arguments in Dockerfile to handle different build configurations (e.g., Debug vs. Release).
Customize build commands based on the selected configuration.

# Example of handling different build configurations in Dockerfile
ARG BUILD_TYPE=Release

# Set build options based on selected configuration
RUN if [ "$BUILD_TYPE" = "Debug" ]; then \
        make debug; \
    else \
        make release; \
    fi

Collaboration and Deployment

Collaboration and deployment are crucial stages in the software development lifecycle. Docker provides a robust platform for sharing development environments across teams and deploying C/C++ applications consistently in production environments. Here's how you can leverage Docker for collaboration and deployment:

Build Docker images containing your C/C++ development environment, including dependencies, libraries, and tools.
Share these Docker images via a Docker registry or repository, ensuring consistency across development teams.

# Example of building and sharing a Docker image
docker build -t my_cpp_image .
docker tag my_cpp_image my_registry/my_cpp_image:latest
docker push my_registry/my_cpp_image:latest

Team members can pull the shared Docker image to set up their development environments quickly and reliably.

Deploying C/CPP Applications using Docker Containers in Production Environments

Package your C/C++ applications into Docker containers, along with necessary dependencies and configurations.
Deploy these Docker containers to production environments, ensuring consistency and portability across different infrastructure setups.

# Example of deploying a Docker container in production
docker run -d --name my_cpp_app my_registry/my_cpp_image:latest

Docker containers offer isolation, scalability, and reproducibility, making them well-suited for deploying C/C++ applications in production environments.

By leveraging Docker for collaboration and deployment, development teams can streamline their workflows, maintain consistency across environments, and accelerate the delivery of C/C++ applications from development to production.

Best Practices and Tips

Optimizing Dockerfiles, managing container resources, and securing Docker containers are essential aspects of using Docker effectively for C/C++ projects. Here are some best practices and tips:

Optimizing Dockerfiles for Efficiency:
- Keep Dockerfiles clean and concise by minimizing the number of layers and reducing the size of the final image.
- Use multi-stage builds to separate build dependencies from runtime dependencies, resulting in smaller images.
- Utilize caching mechanisms to speed up the build process by caching intermediate layers.
Managing Container Resources Effectively:
- Specify resource constraints such as CPU and memory limits for Docker containers to prevent resource contention and ensure predictable performance.
- Monitor container resource usage using Docker metrics and adjust resource limits accordingly to optimize resource utilization.
- Consider using orchestration tools like Docker Swarm or Kubernetes for managing containerized applications at scale, enabling efficient resource allocation and scheduling.
Securing Docker Containers for C/CPP Projects:
- Update Docker base images and dependencies regularly to patch known vulnerabilities and ensure the security of your containers.
- Implement least privilege principles by running containers with non-root users and restricting container capabilities using Docker security features.
- Enable Docker Content Trust (DCT) to ensure the integrity and authenticity of images by verifying image signatures before pulling and running them.
- Monitor container activities and network traffic using Docker security tools and third-party solutions to detect and respond to security threats effectively.

Examples:

Optimizing Dockerfiles for Efficiency:

Minimizing Layers:

# Bad practice: creating multiple layers
RUN apt-get update
RUN apt-get install -y package1
RUN apt-get install -y package2

# Good practice: combining commands to reduce layers
RUN apt-get update && \
    apt-get install -y package1 package2

Using Multi-Stage Builds:

# Single-stage build
FROM base_image AS builder
RUN build_commands

FROM base_image
COPY --from=builder /app /app

Caching Mechanisms:

# Bad practice: not utilizing caching
COPY . /app
RUN npm install
RUN npm build

# Good practice: using caching for dependencies
COPY package.json /app
RUN npm install
COPY . /app
RUN npm build

Managing Container Resources Effectively:

Specifying Resource Constraints:

# Setting CPU and memory limits for a Docker container
docker run --cpus=2 --memory=2g my_image

Monitoring Container Resource Usage:

# Checking container resource usage
docker stats my_container

Using Orchestration Tools:

# Deploying a Docker stack with Docker Swarm
docker stack deploy -c docker-compose.yml my_stack

Securing Docker Containers for C/CPP Projects:

Updating Docker Base Images:

# Pulling the latest version of a Docker base image
docker pull base_image:latest

Implementing Least Privilege Principles:

# Running container with non-root user
USER my_user

Enabling Docker Content Trust (DCT):

# Enabling Docker Content Trust
export DOCKER_CONTENT_TRUST=1

Monitoring Container Activities:

# Monitoring container logs
docker logs my_container

Debugging C/CPP Applications using GDB

You can use GDB's remote debugging feature to debug your C/C++ applications running inside a Docker container from a host machine. Here's how you can achieve that:

Expose GDB Server Port in Docker Container:

In your Dockerfile or Docker Compose file, expose a port for GDB server to communicate with the host machine.

# Example of exposing GDB server port in Docker Compose file
version: '3'
services:
  my_cpp_app:
    build:
      context: .
      dockerfile: Dockerfile
    ports:
      - "1234:1234"  # Expose port for GDB server

Run GDB Server in Docker Container:
- Start your Docker container as usual, but ensure that GDB server is running inside the container, listening on the exposed port.
```
# Start Docker container with GDB server
docker run --rm -d -p 1234:1234 my_cpp_image gdbserver :1234 my_executable
```
Connect Host GDB to GDB Server:
- On your host machine, use the GDB command-line interface to connect to the GDB server running inside the Docker container.
```
# Connect host GDB to GDB server in Docker container
gdb
(gdb) target remote <docker_host_ip>:1234
```
Debug C/C++ Application with Host GDB:
- Once connected, you can use GDB commands on your host machine to debug the C/C++ application running inside the Docker container.
```
# Example of setting breakpoints and debugging
(gdb) break main
(gdb) continue
(gdb) ...
```

By setting up GDB server in the Docker container and connecting it to the host GDB, you can effectively debug your C/C++ applications running inside Docker containers from your host machine.

Docker containers vs native builds

This table provides a concise comparison between Docker containers and native builds across various aspects of performance and functionality.

Aspect	Docker Containers	Native Builds
Isolation Overhead	Introduces a layer of abstraction, incurring some overhead.	Executes directly on the host system without overhead.
Resource Allocation	Allows fine-grained control over resource allocation.	Accesses all system resources without virtualization.
Portability and Consistency	Offers portability across different environments, ensuring consistency.	Tightly coupled to the host environment, may lack consistency.
Dependency Management	Encapsulates dependencies within a self-contained environment.	Relies on system-wide dependencies, requiring careful management.

Multi Architecture Builds

This example demonstrates how to build a simple "Hello, World!" C++ application for both amd64 and arm64 architectures using Docker buildx. The resulting Docker image can be run on systems with different CPU architectures without modification, showcasing the versatility and compatibility of Docker multi-architecture builds. (Demo: HERE):

Create a C++ source file (hello.cpp):

#include <iostream>

int main() {
    std::cout << "Hello, World!" << std::endl;
    return 0;
}

Create a Dockerfile:

 FROM alpine:latest

 # Install build dependencies
 RUN apk update && apk add --no-cache \
     g++ \
     && rm -rf /var/cache/apk/*

 # Copy the source code
 COPY main.cpp /app/

 # Set the working directory
 WORKDIR /app/

 # Compile the C++ code
 RUN g++ -o hello main.cpp

 # Run the compiled binary
 CMD ["./hello"]

Build the Docker image for multiple architectures:

 # Create the builder (if not already created)
 docker buildx create --name my_builder

 # Use the builder for subsequent builds
 docker buildx use my_builder

 # Build the multi-architecture image and load it into local Docker daemon
 docker buildx build --platform linux/amd64,linux/arm64 -t hello-world:latest .
 docker buildx build --load -t hello-world:latest .

Run the Docker image:
```
docker run hello-world
```

Docker container runtime management

Docker container runtime management involves various tasks to ensure that containers are running efficiently, securely, and in accordance with application requirements. Here are some key commands used for that:

Starting and Stopping Containers:
- docker start: Start a stopped container.
- docker stop: Stop a running container.
- docker restart: Restart a container.
Viewing Container Logs:
- docker logs: View the logs of a running container.
Inspecting Container Details:
- docker inspect: View detailed information about a container.
Monitoring Container Performance:
- docker stats: Display live performance statistics for running containers.
Managing Container Resources:
- docker run --cpu: Limit CPU usage.
- docker run --memory: Limit memory usage.
- docker run --cpus: Limit CPU cores.
- docker service update --limit-cpu: Update CPU limits for a service (Swarm mode).
- docker service update --limit-memory: Update memory limits for a service (Swarm mode).
Health Checks:
- Docker supports health checks defined in Dockerfiles or using the HEALTHCHECK instruction.
Security:
- Docker provides various security features such as user namespaces, seccomp profiles, and container capabilities.
- docker run --security-opt: Set security options for a container.
- docker container update --security-opt: Update security options for a container.
Networking:
- docker network create: Create a custom network.
- docker network connect: Connect a container to a network.
- docker network disconnect: Disconnect a container from a network.
Data Management:
- docker volume create: Create a volume for persistent data.
- docker run -v: Mount a volume inside a container.
- docker run --mount: Mount a host directory into a container.
Lifecycle Management:
- docker create: Create a container without starting it.
- docker rm: Remove a container.
- docker prune: Clean up unused resources.
Running Containers as Daemons:
- Use the -d or --detach flag with docker run to run a container in the background as a daemon.
- Example: docker run -d my_image
Automatic Restart:
- Use the --restart option with docker run to specify restart policies.
- Example: docker run --restart=unless-stopped my_image

Docker-compose real case example:

version: "3"

services:

  hub-frpc:
    image: energy-hub-manager-amd64:0.1
    command: /hub/frpc_amd64 -c /var/hub/frpc.ini
    network_mode: "host"
    volumes:
      - /var/hub:/var/hub
    ports:
      - 7400:7400
    restart: unless-stopped

  hub-manager:
    image: energy-hub-manager-amd64:0.1
    command: python3 -u /hub/main.py
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /tmp/logs:/tmp/logs
      - /var/hub:/var/hub
    network_mode: "host"
    restart: on-failure

Part 2 - My Dockerized C/CPP environment

Configuring My C/CPP Development Environment

This Dockerfile is designed to create a C/C++ build environment within a Docker container. Let's elaborate on its structure and functionality:

################################################################################
# Dockerfile for creating a cpp build environment
################################################################################


################################################################################
################################################################################
## PROJECT BUILD STAGE
################################################################################
################################################################################
#FROM ubuntu:22.04
FROM debian:bookworm-slim as project-build

# Set docker image info
LABEL maintainer="Lukasz Uszko <lukasz.uszko@gmail.com>"
LABEL description="luk6xff's cpp project template"

# Set non-interactive installation mode
ENV DEBIAN_FRONTEND=noninteractive

# Create a default user and group
ARG USERNAME
ARG USER_UID
ARG USER_GID
ARG ARCH
ENV HOME /home/${USERNAME}

# Create a non-root user to use
RUN groupadd --gid ${USER_GID} ${USERNAME} \
    && useradd -s /bin/bash -c ${USERNAME} -d ${HOME} --uid ${USER_UID} --gid ${USER_GID} -m ${USERNAME} \
    # Add sudo support
    && apt-get update \
    && apt-get install --no-install-recommends -qy sudo \
    && echo $USERNAME ALL=\(root\) NOPASSWD:ALL > /etc/sudoers.d/$USERNAME \
    && chmod 0440 /etc/sudoers.d/$USERNAME \
    # Cleanup
    && apt-get autoremove -y \
    && apt-get clean -y \
    && rm -rf /var/lib/apt/lists/*

################################################################################
# Install luk6xff mandatory packages
################################################################################
RUN apt-get update && apt-get install --no-install-recommends -qy \
    # Build tools
    make \
    autoconf \
    automake \
    ninja-build \
    libtool \
    m4 \
    cmake \
    ccache\
    # GNU Toolchain
    gcc \
    g++ \
    # LLVM Toolchain
    clang-15 \
    clang-tools \
    clangd-15 \
    libclang-15-dev \
    lld \
    lldb \
    # C/C++ libraries
    libgtest-dev \
    libgmock-dev \
    # Libraries
    gnupg \
    unzip \
    #gcc-multilib \
    build-essential \
    software-properties-common \
    # Python
    python3 \
    python3-pip \
    python3-venv \
    python3-dev \
    python3-setuptools \
    # Networking
    curl \
    # Code analysis
    cppcheck \
    iwyu \
    clang-tidy \
    clang-format \
    # Debugging/tracing
    gdb \
    gdbserver \
    valgrind \
    strace \
    # Code coverage
    lcov \
    gcovr \
    # Documentation
    doxygen \
    graphviz \
    doxygen-latex \
    doxygen-doxyparse\
    # Version control
    git \
    # Other tools
    lsb-release \
    jq \
    gawk \
    # Cleanup
    && apt-get autoremove -y \
    && apt-get clean -y \
    && rm -rf /var/lib/apt/lists/*

# Install GEF
RUN bash -c "$(curl -fsSL https://gef.blah.cat/sh)"

# Setup python virtual environment
ENV VIRTUAL_ENV=/opt/venv
RUN python3 -m venv $VIRTUAL_ENV
ENV PATH="$VIRTUAL_ENV/bin:$PATH"

# Set environment variables for static analysis tools
ENV CODE_CHECKER_PATH=/opt/CodeChecker
ENV BUILD_LOGGER_64_BIT_ONLY=YES
ENV PATH="${CODE_CHECKER_PATH}/build/CodeChecker/bin:${PATH}"
ENV CC_REPO_DIR="${CODE_CHECKER_PATH}"
# Expose the default port used by CodeChecker server
EXPOSE 8999

# Install static analysis tools only for x86_64
RUN if [ "$ARCH" = "-amd64" ]; then \
        curl -sL https://deb.nodesource.com/setup_16.x | bash - \
        && apt-get install -y nodejs \
        && git clone --depth 1 https://github.com/Ericsson/CodeChecker.git ${CODE_CHECKER_PATH} \
        && cd ${CODE_CHECKER_PATH} \
        && make package \
        && chmod +x ${CODE_CHECKER_PATH}/build/CodeChecker/bin/report-converter \
        && pip install --no-cache-dir cpplint \
        && VERSION=1.1.0; \
        curl -sSL "https://github.com/facebook/infer/releases/download/v$VERSION/infer-linux64-v$VERSION.tar.xz" \
        | tar -xJ -C /opt \
        && ln -s "/opt/infer-linux64-v$VERSION/bin/infer" /usr/local/bin/infer \
    ; fi


################################################################################
# Install additional packages required for your project
################################################################################
RUN apt-get update \
    && apt-get install --no-install-recommends -qy \
    libxrandr-dev \
    libxcursor-dev \
    libudev-dev \
    libx11-dev \
    libfreetype-dev \
    libopenal-dev \
    libflac-dev \
    libvorbis-dev \
    libgl1-mesa-dev \
    libegl1-mesa-dev \
    # Cleanup
    && apt-get autoremove -y \
    && apt-get clean -y \
    && rm -rf /var/lib/apt/lists/*

################################################################################
# Setup
################################################################################
USER ${USERNAME}
WORKDIR $HOME



################################################################################
################################################################################
## PROJECT RUNTIME STAGE
################################################################################
################################################################################
#FROM project-build as project-runtime
FROM debian:bookworm-slim as project-runtime
RUN apt-get update \
    && apt-get install --no-install-recommends -qy \
    libxrandr2 \
    libxcursor1 \
    libudev1 \
    libfreetype6 \
    libopenal1 \
    libflac12 \
    libvorbisfile3 \
    libgl1 \
    libegl1 \
    gdbserver \
    && apt-get autoremove -y \
    && apt-get clean -y \
    && rm -rf /var/lib/apt/lists/*
COPY ../app/build/bin /app
#CMD ["/app/my_project"]
CMD ["gdbserver", ":2345", "/app/my_project"]

My Dockerfile sets up a comprehensive development and runtime environment tailored for C++ projects, using Debian Bookworm as the base image. It's structured into two stages: build stage and runtime stage. Here's a detailed breakdown of what's happening:

Build Stage

Base Image and Metadata:
- Starts from debian:bookworm-slim as the base.
- Sets labels for the maintainer and a description of the Docker image.
Environment Configuration:
- Sets DEBIAN_FRONTEND to noninteractive to avoid prompts during package installations.
- Uses ARG to accept variables like USERNAME, USER_UID, USER_GID, and ARCH from the build command, setting up a flexible user environment.
- Defines HOME directory based on the USERNAME.
User Setup:
- Creates a non-root user with the specified UID and GID, adds them to a group, and gives them sudo access without a password. This step also performs a cleanup of the package lists.
Package Installation:
- Installs a variety of packages crucial for C++ development, including build tools (like cmake, gcc, clang-15), debugging tools (gdb, valgrind), static analysis tools (cppcheck, clang-tidy), and documentation tools (doxygen).
- It also handles installation and cleanup to keep the image size down.
GEF Installation:
- Installs GEF (GDB Enhanced Features), a script that supercharges the GDB debugger with additional features.
Python Environment Setup:
- Sets up a Python virtual environment and updates the PATH to use tools from this virtual environment.
CodeChecker Installation:
- Conditionally installs CodeChecker, a static analysis tool, if the architecture is AMD64. It includes installation of Node.js, compilation of CodeChecker, and linking of its binaries.
Project-Specific Libraries:
- Installs libraries that might be required for specific projects involving GUI, audio, or other multimedia components.

Runtime Stage

Base Image:
- Starts anew from debian:bookworm-slim as the base for the runtime environment.
Minimal Package Installation:
- Installs only the runtime libraries that are necessary for the application developed during the build stage. This includes libraries like libxrandr2, libxcursor1, etc., and excludes the development headers and tools, reducing the image size and improving security.
Copy Application:
- Copies the compiled binaries from a presumed location (../app/build/bin) into the Docker image.
Command Specification:
- Sets the default command to run the application using gdbserver on a specific port, allowing for remote debugging.

Features and Usage

Build images and apps for different architectures

Release app build

./run.sh -a -amd64
./run.sh -a -arm64

Debug app build

# Debug app build
./run.sh -ad -amd64
./run.sh -ad -arm64

Production image build

# Debug app build
./run.sh -pb -amd64
./run.sh -pb -arm64

Running the container

Run Debug/Release app

./run.sh -ri -amd64
./run.sh -ri -arm64

Run Debug/Release app under GDB server

# Debug app build
./run.sh -rig -amd64
./run.sh -rig -arm64

# To connect to the server please run:
gdb app/build/bin/my_project
(gdb) target remote localhost:2345
(gdb) c

# Demo:
# Stop execution
CTRL+C
# Set breakpoint
(gdb) break Game::updateStatusTextView
(gdb) set var m_score = 9999999

Run production container

./run.sh -pr -amd64
./run.sh -pr -arm64

Enter the dev container

./run.sh -s -amd64
./run.sh -s -arm64

Static Code analysis

./run.sh -ca -amd64

# For CodeChecker server
./run.sh -s -amd64
# Inside the container
cmake --build build -t codechecker
# Goto http://localhost:8999/Default/runs

Unit Tests

./run.sh -u -amd64
# UnitTests Report
firefox ~/Projects/cpp-project-template/app/build/test/unit/report/unit_tests_report.html
# Coverage Report
firefox ~/Projects/cpp-project-template/app/build/test/unit/report/coverage-report/index.html

# Run valgrind for the specific testcase
# Enter the container
./run.sh -s -amd64
# Inside the container
cmake --build build -t valgrind-ConfigReaderTest

Memcheck (Valgrind)

# Build the app
./run.sh -ad -amd64
# Enter the container
./run.sh -s -amd64
# Inside the container
cmake --build build -t memcheck-my_project
# Memcheck  Report
firefox ~/Projects/cpp-project-template/app/build/memcheck_report/index.html

Scanning the image and Linting the Dockerfile

./run.sh -sc

Profiling

# Build the app in Debug mode
./run.sh -ad -amd64

# Run the app
./run.sh -ri -amd64

# Run the profiler client app and connect to port 28077
~/Projects/cpp-project-template/app/thirdparty/EasyProfiler/client_tools/easy_profiler-v2.1.0-linux/run_easy_profiler.sh

Conclusion

In conclusion, Docker containerization offers a powerful solution for simplifying and streamlining the development, testing, and deployment of C/C++ applications. By encapsulating applications and their dependencies into portable containers, Docker enables developers to create consistent and reproducible environments across different platforms.

Throughout this guide, we've explored various aspects of Docker container management, including:

Setting Up Docker for C/CPP Development, including installing Docker and creating Dockerfiles.
Configuring development environments within Docker containers, including installing compilers, build tools, and debugging utilities.
Managing dependencies and incorporating third-party libraries into Docker images.
Streamlining build processes using Dockerfile and Docker Compose.
Testing and debugging C/C++ applications within Docker containers.
Collaboration and deployment strategies for sharing Docker images and deploying applications in production environments.
Best practices for optimizing Dockerfiles, managing container resources, and securing Docker containers.

By following these best practices and leveraging Docker's capabilities, C/C++ developers can enhance productivity, improve collaboration, and ensure consistency across development and production environments. With Docker, the process of building, testing, and deploying C/C++ applications becomes more efficient and reliable, ultimately leading to better software quality and faster time-to-market.
